$2,750.00

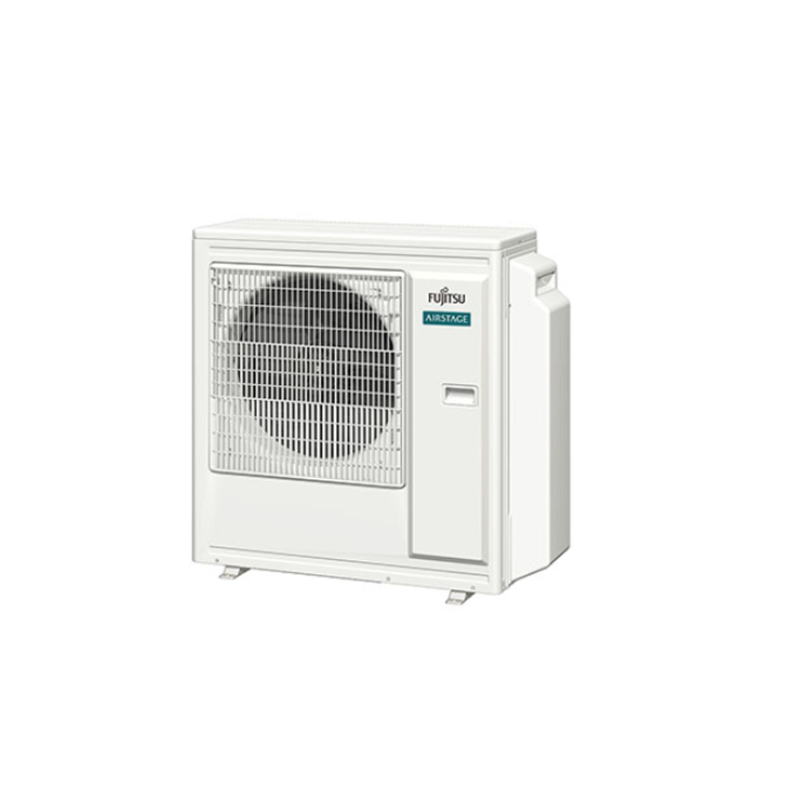

The Fujitsu Outdoor Condenser from the Classic Range is an advanced, eco-friendly solution for powering multi-head split systems. Utilizing R32 refrigerant, this unit delivers exceptional energy efficiency while minimizing environmental impact.
Perfect for those seeking a sustainable and cost-effective climate control system, the Fujitsu Outdoor Condenser with R32 technology ensures optimal performance, reliability, and environmental responsibility. Fujitsu’s trusted quality makes it a smart investment for any multi-zone HVAC setup.
Number of IDUs – 4
| Model
Operation Type |
AOTH30KBTA4
Reverse Cycle |
| Maximum Connectable Indoor Units | 4 |
| Power Source V/Ph/Hz | 230 / 1 / 50 |
| Capacity Class kW | 8 |
| Cooling Capacity kW (Rated (Min – Max)) | 8.00 (2.4 – 10.1) |
| Heating Capacity kW (Rated (Min – Max)) | 9.60 (3 – 12) |
| Input Power Cooling kW (Rated (Max)) | 2.05 (2.88) |
| Input Power Heating kW (Rated (Max)) | 2 (3.25) |
| EER Cooling kW/kW | 3.9 |
| COP Heating kW/kW | 4.8 |
| Total Cooling Seasonal Performance Factor Residential kW (Hot / Average / Cold) | 5.547 / 4.535 / 5.178 |
| Heating Seasonal Performance Factor Residential kW (Hot / Average / Cold) | 6.062 / 6.757 / 6.263 |
| Total Cooling Seasonal Performance Factor Commercial kW (Hot / Average / Cold) | 5.548 / 4.183 / 4.951 |
| Heating Seasonal Performance Factor Commercial kW (Hot / Average / Cold) | 5.663 / 5.72 / 5.402 |
| Outdoor Sound Pressure dBA (Cooling / Heating) | 48 / 54 |
| Outdoor Sound Power dBA | 65 |
| Outdoor Unit Dimensions mm (Height x Width x Depth) | 884 x 820 x 315 |
| Outdoor Unit Weight kg | 59.00 |
| Pipe Length m (Max (Precharged)) | 70 (40) |
| Operation Range Cooling °CDB (Min to Max) | -10 to 50 |
| Operation Range Heating °CDB (Min to Max) | -15 to 24 |
| Refrigerant Type | R32 |
| Refrigerant Amount g | 2,500 |
