$1,760.00

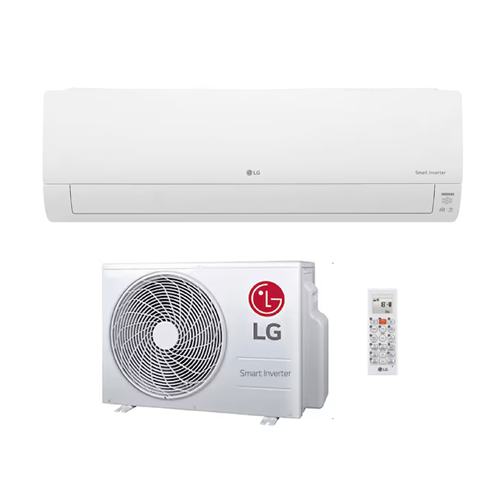

Upgrade Your Comfort with the LG High-Efficiency WH Wall Split Air Conditioner
Transform your space with the LG High-Efficiency WH Wall Split Air Conditioner, designed to deliver exceptional performance while reducing energy consumption. With advanced technology and a sleek design, this unit is perfect for homes and offices seeking year-round comfort and savings.
Key Features:
Upgrade to the LG High-Efficiency WH Wall Split Air Conditioner and experience superior comfort, energy savings, and cutting-edge technology in one sleek package.
LG: Innovation for a Better Life.
| Model | WH24SL-18 | ||
| Indoor Unit | WH24SLN-18 | ||
| Outdoor Unit | WH24SLU-18 | ||
|
Rated Capacity
|
Cooling kw | 7.1 | |
| Heating kw | 8 | ||
|
Capacity Range
|
Cooling kw min – max | 1.0 ~ 8.60 | |
| Heating kw min – max | 1.0 ~ 10.60 | ||
|
Power Input
|
Cooling Rated | 1.89 | |
| Heating Rated | 1.99 | ||
|
Running
Current |
Cooling Rated | 8.4 | |
| Heating Rated | 8.9 | ||
| Full Load Amps | A | 12.7 | |
| EER | W/W | 3.76 | |
| AEER | – | 3.76 | |
| COP | W/W | 4.02 | |
| ACOP | – | 4.02 | |
|
Energy Label / Star Ratings
|
Cooling | 3.5/3.5/3.5 | |
| Heating | 3.0/2.0/1.5 | ||
| Power Supply | 1Ph, 220~240V, 50Hz | ||
|
Indoor
|
Air Flow Rate
|
Cooling, Max / H / M / L | 383 / 283 / 233 / 183 |
| Sound Pressure Level | Cooling, Max / H / M / L / SL | – / 49 / 44 / 40 / 30 | |
| Dimensions (W × H × D) | Net | 1060 x 360 x 265 | |
| Weight | Net | 16.6 | |
|
Outdoor
|
Compressor | Twin Rotary | |
| Condenser | Corrosion Protection | Gold | |
|
Sound Pressure Level
|
Cooling, Rated | 55 | |
| Heating, Rated | 56 | ||
| Sound Power Level | 66 | ||
| Dimensions* (W × H × D) Net | 870 x 800 x 320 | ||
| Weight – Net | 55 | ||
|
Operation
Range |
Cooling | -10 ~ 48 | |
| Heating | -10 ~ 24 | ||
| Circuit Breaker A | 20 | ||
| Power Supply Guide No | 3 Core + Earth | ||
| Power Supply to Unit – | Outdoor | ||
| Power and Communication Cable – No. x mm2 | 4 x 1.0 ( Including Earth) | ||
|
Piping
|
Size
|
Liquid | Ø 9.52 (3/8) |
| Gas | Ø 15.88 (5/8) | ||
| Connections Method | Indoor / Outdoor | Flared / Flared | |
| Drain Hose Size | O.D, I.D | mm | 20, 15 |
|
Between Indoor & Outdoor
|
Piping Length
|
Min ~ Max m | 3 ~ 30 |
| Pre-Charge Length m | 7.5 | ||
| Max. Elevation Difference m | 20 | ||
| Piping Connection Heat Insulation | – | Both liquid and gas pipes | |
|
Refrigerant Charge
|
Type – | R32 | |
| Pre Charge g | 1750 | ||
| Additional Charge g/m | 20 | ||
| Control – | Electronic Expansion Valve |
