$3,000.00

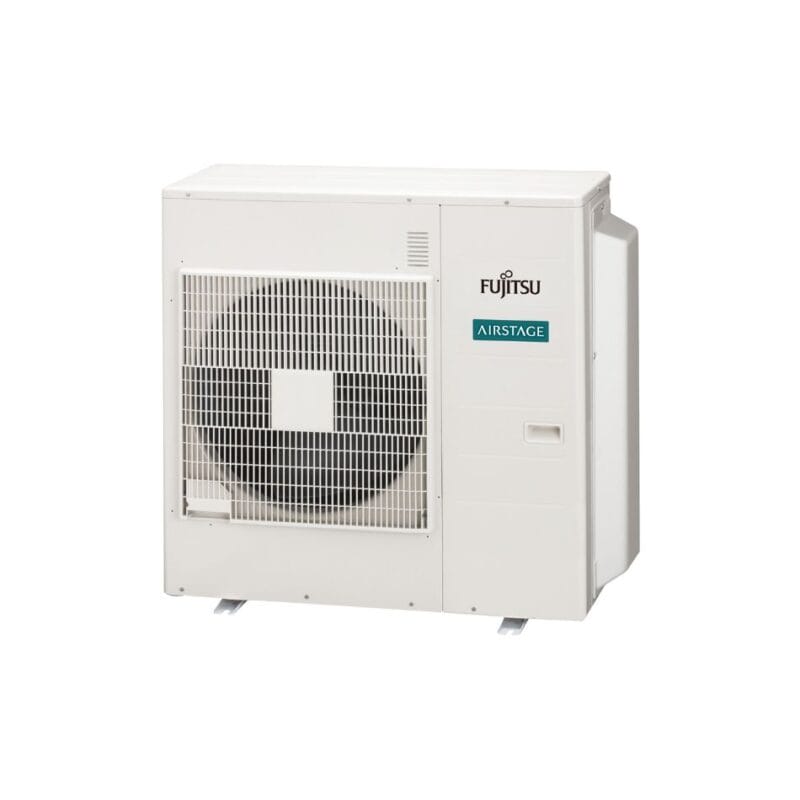

The Fujitsu Outdoor Condenser from the Classic Range is a versatile and efficient solution designed to power multi-head split systems. Operating with eco-friendly R410A refrigerant, this unit ensures energy efficiency and reliable performance across all connected indoor units.
This Fujitsu outdoor condenser is the ideal choice for homes or businesses requiring adaptable, reliable, and energy-conscious climate solutions. Backed by Fujitsu’s trusted reputation, it ensures maximum comfort with minimum fuss.
Number of IDUs – 5
| Model Number
Operation Type |
AOTG36LBLA5
Reverse Cycle |
| Maximum Connectable Indoor Units | 5 |
| Power Source V/Ph/Hz | 230 / 1 / 50 |
| Capacity Class kW | 10 |
| Cooling Capacity kW (Rated (Min – Max)) | 10.00 (3.5 – 12.5) |
| Heating Capacity kW (Rated (Min – Max)) | 12.00 (3.5 – 14) |
| Input Power Cooling kW (Rated (Max)) | 2.44 (4.04) |
| Input Power Heating kW (Rated (Max)) | 2.79 (3.98) |
| EER Cooling kW/kW | 4.1 |
| COP Heating kW/kW | 4.3 |
| Total Cooling Seasonal Performance Factor Residential kW (Hot / Average / Cold) | 5.779 / 5.258 / 5.441 |
| Heating Seasonal Performance Factor Residential kW (Hot / Average / Cold) | 5.242 / 4.75 / 4.398 |
| Total Cooling Seasonal Performance Factor Commercial kW (Hot / Average / Cold) | 6.249 / 6.36 / 6.805 |
| Heating Seasonal Performance Factor Commercial kW (Hot / Average / Cold) | 5.247 / 4.954 / 4.63 |
| Outdoor Sound Pressure dBA (Cooling / Heating) | 52 / 54 |
| Outdoor Sound Power dBA | 68 |
| Outdoor Unit Dimensions mm (Height x Width x Depth) | 998 x 970 x 370 |
| Outdoor Unit Weight kg | 93.00 |
| Pipe Length m (Max (Precharged)) | 80 (50) |
| Operation Range Cooling °CDB (Min to Max) | -10 to 46 |
| Operation Range Heating °CDB (Min to Max) | -15 to 24 |
| Refrigerant Type | R410A |
| Refrigerant Amount g | 4,000 |
